4 Post Superspan Hip

Price range: $43,707.00 through $63,100.00

Four support posts. One roof-section. Cable-tensioned fabric. Hip design.

SKU: 4PSSH Category: Tags: , , , , ,
Guaranteed Safe Checkout

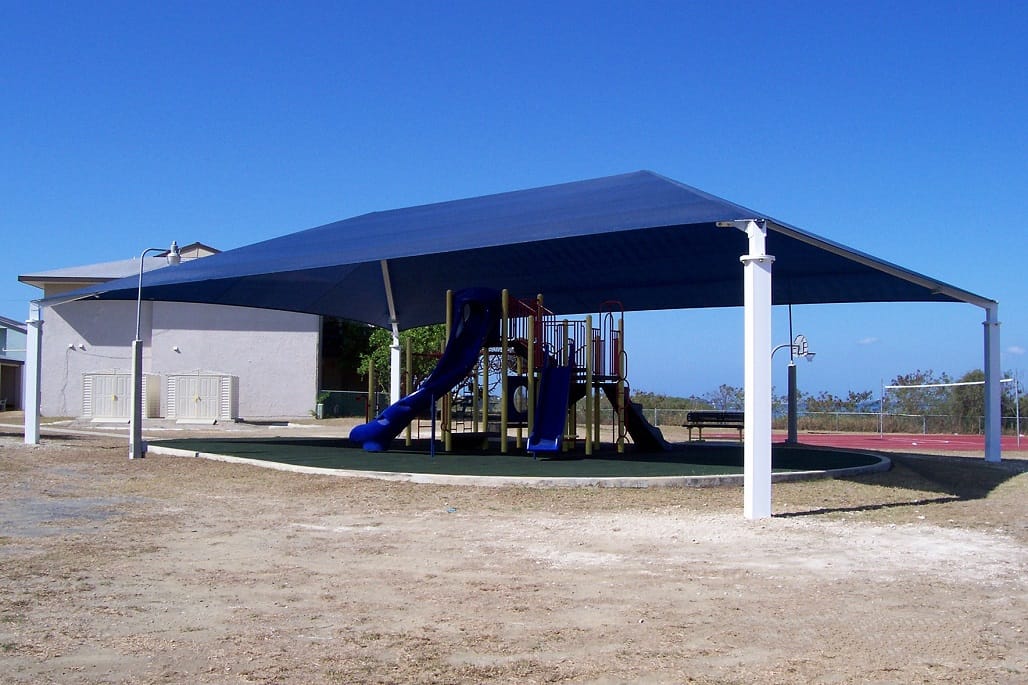

The 4 Post Superspan Hip shade structure features a cable-tensioned fabric hip roof-section, with four support posts, and sizes ranging 22’x42′ to 60’x60′.

  • Fabric: High Density Polyethylene (HDPE) Mesh (Colourshade FR/Shadesure)
  • Frame: Steel (Square/Rectangular/Round tubing components; Polyester-TGIC Powder Coat finish)
  • Cable/Hardware: Galvanized
  • Wind Load Fabric On (Max): 90 MPH nominal/115 MPH ultimate
  • Snow Load Fabric On (Max): 5 PSF
  • Post Attachment Design: Embed/Base Plate/Recessed Base Plate
Size

22' x 42', 22' x 44', 24' x 42', 24' x 44', 24' x 46', 24' x 48', 26' x 42', 26' x 44', 26' x 46', 26' x 48', 26' x 50', 26' x 52', 28' x 42', 28' x 44', 28' x 46', 28' x 48', 28' x 50', 28' x 52', 28' x 54', 28' x 56', 30' x 42', 30' x 44', 30' x 46', 30' x 48', 30' x 50', 30' x 52', 30' x 54', 30' x 56', 30' x 58', 30' x 60', 32' x 42', 32' x 44', 32' x 46', 32' x 48', 32' x 50', 32' x 52', 32' x 54', 32' x 56', 32' x 58', 32' x 60', 34' x 42', 34' x 44', 34' x 46', 34' x 48', 34' x 50', 34' x 52', 34' x 54', 34' x 56', 34' x 58', 34' x 60', 36' x 42', 36' x 44', 36' x 46', 36' x 48', 36' x 50', 36' x 52', 36' x 54', 36' x 56', 36' x 58', 36' x 60', 38' x 42', 38' x 44', 38' x 46', 38' x 48', 38' x 50', 38' x 52', 38' x 54', 38' x 56', 38' x 58', 38' x 60', 40' x 42', 40' x 44', 40' x 46', 40' x 48', 40' x 50', 40' x 52', 40' x 54', 40' x 56', 40' x 58', 40' x 60', 42' x 42', 42' x 44', 42' x 46', 42' x 48', 42' x 50', 42' x 52', 42' x 54', 42' x 56', 42' x 58', 42' x 60', 44' x 44', 44' x 46', 44' x 48', 44' x 50', 44' x 52', 44' x 54', 44' x 56', 44' x 58', 44' x 60', 46' x 46', 46' x 48', 46' x 50', 46' x 52', 46' x 54', 46' x 56', 46' x 58', 46' x 60', 48' x 48', 48' x 50', 48' x 52', 48' x 54', 48' x 56', 48' x 58', 48' x 60', 50' x 50', 50' x 52', 50' x 54', 50' x 56', 50' x 58', 50' x 60', 52' x 52', 52' x 54', 52' x 56', 52' x 58', 52' x 60', 54' x 54', 54' x 56', 54' x 58', 54' x 60', 56' x 56', 56' x 58', 56' x 60', 58' x 58', 58' x 60', 60' x 60'
Entry Height

8'
Fabric Color

Colourshade FR – Blue, Colourshade FR – Desert Sand, Colourshade FR – Green, Colourshade FR – Red, Colourshade FR – Silver, Colourshade FR – Terracotta, Colourshade FR – Yellow, Shadesure – Arizona, Shadesure – Atomic Orange, Shadesure – Black, Shadesure – Chocolate, Shadesure – Cinnamon, Shadesure – Desert Sand, Shadesure – Electric Purple, Shadesure – Laguna Blue, Shadesure – Mulberry, Shadesure – Navy Blue, Shadesure – Olive, Shadesure – Rain Forest, Shadesure – Red, Shadesure – Royal Blue, Shadesure – Silver, Shadesure – Sunflower Yellow, Shadesure – Terracotta, Shadesure – Turquoise, Shadesure – White, Shadesure – Zesty Lime
Frame Color

Black – 115618BLK, Blue – 115618BLU, Cobalt – 115618CBB, Dark Brown – 115618DBW, Forest Green – 115618FRG, Light Ivory – 115893, Red – 115618RED, Tele-Gray – 115892, White – 115618WHT, Yellow – 115618YLW
Post Attachment Design

Embed, Base Plate (Anchor Bolts included), Recessed Base Plate (Anchor Bolts included)
Engineering

Unsealed Engineering Drawing (International Building Code 2021), Unsealed Engineering Drawing (California Building Code 2022 – Based on IBC 2021), Electronic Sealed Engineering Drawing (International Building Code 2021), Electronic Sealed Engineering Drawing (California Building Code 2022 – Based on IBC 2021), Wet Sealed Engineering Drawing (International Building Code 2021), Wet Sealed Engineering Drawing (California Building Code 2022 – Based on IBC 2021)
