2 Post Full Hip Cantilever – Double

Price range: $17,600.00 through $46,700.00

Two support posts. Two roof-sections. Cable-tensioned fabric. Double hip cantilever design.

SKU: 2PFHCD Category: Tags: , , ,
Guaranteed Safe Checkout

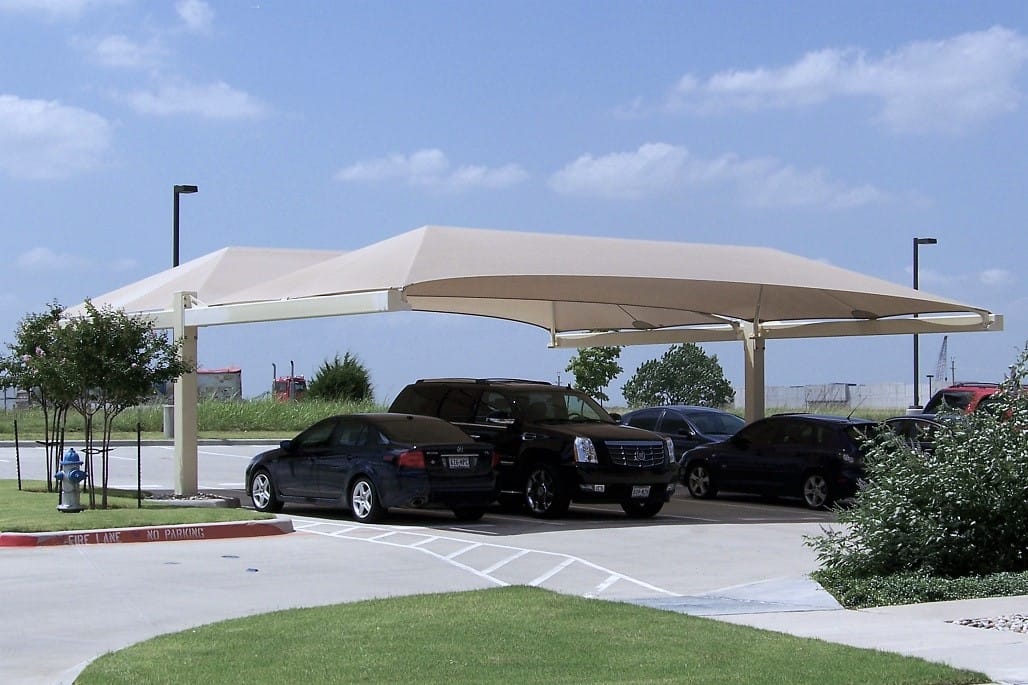

The 2 Post Full Hip Cantilever – Double shade structure features two suspended cable-tensioned fabric hip roof-sections, with two support posts, and sizes ranging from 12’x20′ to 36’x40′.

  • Fabric: High Density Polyethylene (HDPE) Mesh (Colourshade FR/Shadesure)
  • Frame: Steel (Square/Rectangular/Round tubing components; Polyester-TGIC Powder Coat finish)
  • Cable/Hardware: Galvanized
  • Wind Load Fabric On (Max): 90 MPH nominal/115 MPH ultimate
  • Snow Load Fabric On (Max): 5 PSF
  • Post Attachment Design: Embed/Base Plate/Recessed Base Plate
Size

12' x 20', 12' x 22', 12' x 24', 14' x 20', 14' x 22', 14' x 24', 14' x 26', 14' x 28', 16' x 20', 16' x 22', 16' x 24', 16' x 26', 16' x 28', 16' x 30', 16' x 32', 18' x 20', 18' x 22', 18' x 24', 18' x 26', 18' x 28', 18' x 30', 18' x 32', 18' x 34', 18' x 36', 18' x 38', 18' x 40', 20' x 20', 20' x 22', 20' x 24', 20' x 26', 20' x 28', 20' x 30', 20' x 32', 20' x 34', 20' x 36', 20' x 38', 20' x 40', 22' x 22', 22' x 24', 22' x 26', 22' x 28', 22' x 30', 22' x 32', 22' x 34', 22' x 36', 22' x 38', 22' x 40', 24' x 24', 24' x 26', 24' x 28', 24' x 30', 24' x 32', 24' x 34', 24' x 36', 24' x 38', 24' x 40', 26' x 26', 26' x 28', 26' x 30', 26' x 32', 26' x 34', 26' x 36', 26' x 38', 26' x 40', 28' x 28', 28' x 30', 28' x 32', 28' x 34', 28' x 36', 28' x 38', 28' x 40', 30' x 30', 30' x 32', 30' x 34', 30' x 36', 30' x 38', 30' x 40', 32' x 32', 32' x 34', 32' x 36', 32' x 38', 32' x 40', 34' x 34', 34' x 36', 34' x 38', 34' x 40', 36' x 36', 36' x 38', 36' x 40'
Entry Height

8'
Fabric Color

Colourshade FR – Blue, Colourshade FR – Desert Sand, Colourshade FR – Green, Colourshade FR – Red, Colourshade FR – Silver, Colourshade FR – Terracotta, Colourshade FR – Yellow, Shadesure – Arizona, Shadesure – Atomic Orange, Shadesure – Black, Shadesure – Chocolate, Shadesure – Cinnamon, Shadesure – Desert Sand, Shadesure – Electric Purple, Shadesure – Laguna Blue, Shadesure – Mulberry, Shadesure – Navy Blue, Shadesure – Olive, Shadesure – Rain Forest, Shadesure – Red, Shadesure – Royal Blue, Shadesure – Silver, Shadesure – Sunflower Yellow, Shadesure – Terracotta, Shadesure – Turquoise, Shadesure – White, Shadesure – Zesty Lime
Frame Color

Black – 115618BLK, Blue – 115618BLU, Cobalt – 115618CBB, Dark Brown – 115618DBW, Forest Green – 115618FRG, Light Ivory – 115893, Red – 115618RED, Tele-Gray – 115892, White – 115618WHT, Yellow – 115618YLW
Post Attachment Design

Embed, Base Plate (Anchor Bolts included), Recessed Base Plate (Anchor Bolts included)
Engineering

Unsealed Engineering Drawing (International Building Code 2021), Unsealed Engineering Drawing (California Building Code 2022 – Based on IBC 2021), Electronic Sealed Engineering Drawing (International Building Code 2021), Electronic Sealed Engineering Drawing (California Building Code 2022 – Based on IBC 2021), Wet Sealed Engineering Drawing (International Building Code 2021), Wet Sealed Engineering Drawing (California Building Code 2022 – Based on IBC 2021)
